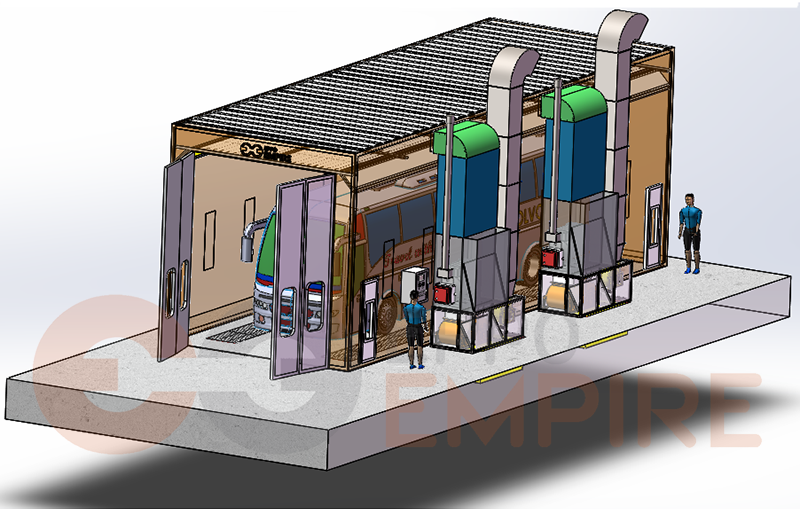

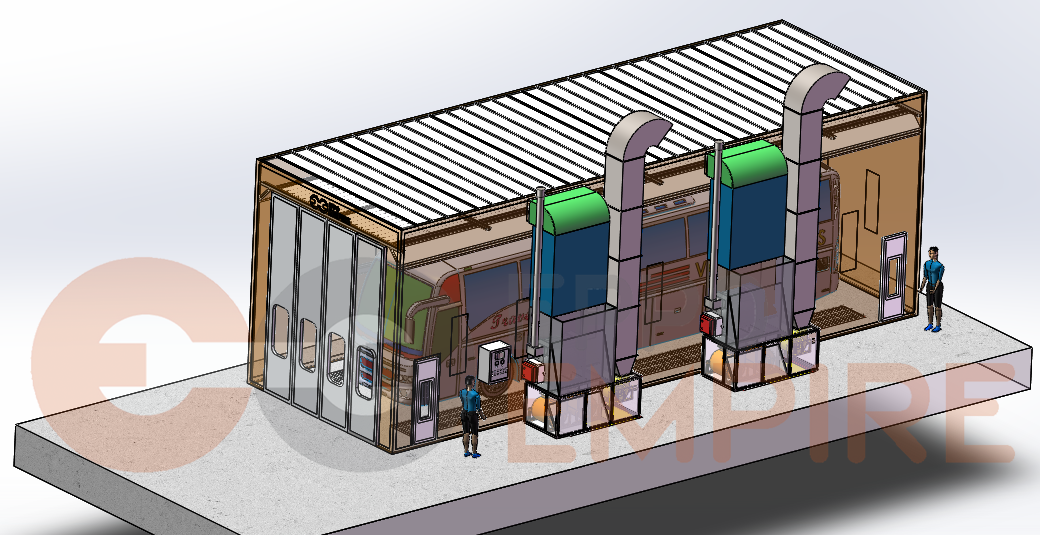

EP-500

Dimensions:

Length (mm)

Width (mm)

Height (mm)

Booth Outside

15,200

6,400

4,900

Booth Inside

15,000

5,000

4,800

Entrance Door

Equipped with handle & lock

4,000

4,800

Personnel Door

2units with handle & anti-explosion Lock

800

2,000

Features:

Total Power 50 KW; 380V/3phase/50HZ

Noise < 80 db

1. Walls & Ceiling

- Panels 75 mm  thick with rock wool  in the middle and color steel on both sides, steel thick 0.476 mm.

- With strengthening steel construction

2. Basement System

- Metal Pedestal(Galvanized), with Filter Tray*2rows&Ramps a couple

- Grid Plates(Galvanized),*2rows

- Diamond Plates(Powder Coated or Galvanized)*3rows

- No basement, the booth mounts on the concrete ground

3. Heating System

- Diesel Burner (Italy RIELLO, RG5S)* 2units, 260000Kcal/h

- Heating Exchanger (Stainless Steel material)* 2units

- 8~15 minutes reaching the baking temperature 60~80 degree Celsius

- Cabinet (rock-wool) * 2units; Air Ducts * 4pcs

4. Filter System

- Primary Filter* 1set, filtering rate > 83%

- Air-Intake Filter* 1set, filtering rate > 97%

- Air-Exhaust Filter* 1set, filtering rate > 70%

5. Air System

- Air-Intake Fans* 4units, Centrifugal Fans with 7.5 KW motor each

- Air-Exhaust Fan* 2units, Centrifugal Fans with 11 KW motor each

- Air velocity 0.35 m/s

- Cabinet for the fans* 2units, Air Ducts* 6pcs, and Electric  Air Damper* 2units

6. Illumination

- Ceiling Lights * 64pcs, 18w each, with Light Fixtures, anti-explosion design

- Side Lights * 64pcs, 18w each, with Light Fixtures, anti-explosion design

7. Control Panel

- 2unit, including Spray Switch, Baking Switch, Light Switch, Emergency Stop, etc.

Included

- All Hardware, Fasteners, and Sealants

Optional Part

-Infrared Lamp

-Natural gas heating system

-Heating recycle system

-Water based paint system

-Water-proof roof for outdoor booth installation.
